Wise Panel System

WISE WOOD AND STEEL PANELS ARE A UNIQUE PATENT-PENDING PROCESS UTILIZING THE POWER OF COMPOSITE TECHNOLOGY

Minimizes conduction of heat & cold
Significantly reduces air infiltration
Improves acoustics and protects against fire
No off-gassing or harmful chemicals
EnergyStar™ compliant pre-Insulated steel framing
Protects against mildew and decay and consequently there is no food source for mold or for termites
Every structure comes with an energy usage guarantee of ultra-energy efficient performance and comfort
Rigid and fire-retardant
Easy to carry and modify
Very little waste on the job site

The Shortcomings of Conventional Stick Framing

Typical stud wall designs place cavity insulation between the studs. This results in an uneven thermal distribution over the wall. The highly conductive studs act as thermal short circuits, where heat moves rapidly around the cavity insulation, reducing the system’s thermal performance. These thermal shorts can reduce the R-value of insulation by more than 50 percent of its rated value. What’s more, adding thicker insulation between the studs will not significantly improve thermal performance, nor will increasing stud size or spacing – making it physically impossible to achieve an R-19 stud wall with R-19 rated mineral fiber insulation by itself.

– Dow Chemical Company (White Paper)

The Benefits of The Wise Panel System to Builders

Cuts framing time of exterior walls by as much as 50%
No cranes needed as with heavy wood S.I.P. panels
Incredibly quiet wall system
Turns any structure into an igloo cooler that happens to have windows and doors
Exceeds the Performance Criteria of the 2021 IECC Energy Code

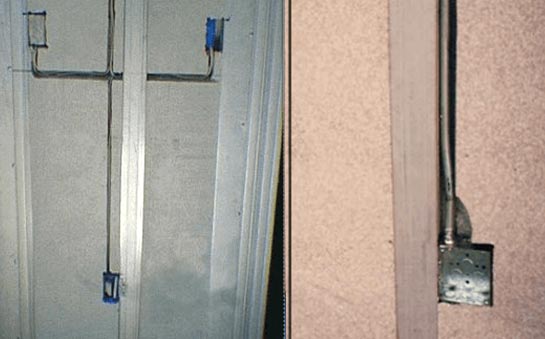

Pre-molded areas for electrical chases
Vertical and lateral load-bearing capabilities
Waste and clean-up cost are minimal

Wise Panels are thermally broken, lightweight composite building components that provide five functions in one fast and easy step:

Framing
Insulation
Air Barrier
Vapor Barrier
Exterior Sheathing

Wise Panels may be used for:

Exterior Walls
Interior Walls
Partitions
Basements
Floors
Ceilings
Roofs

Drilling

Combinations of these pre-insulated components are screwed together to form a unique high performance energy shell that is fast, lightweight and extremely strong with superior thermal and acoustical properties.

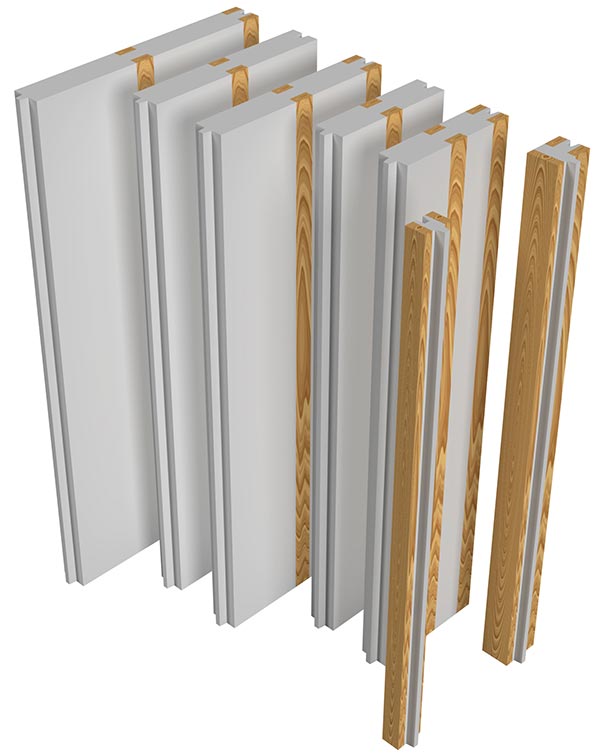

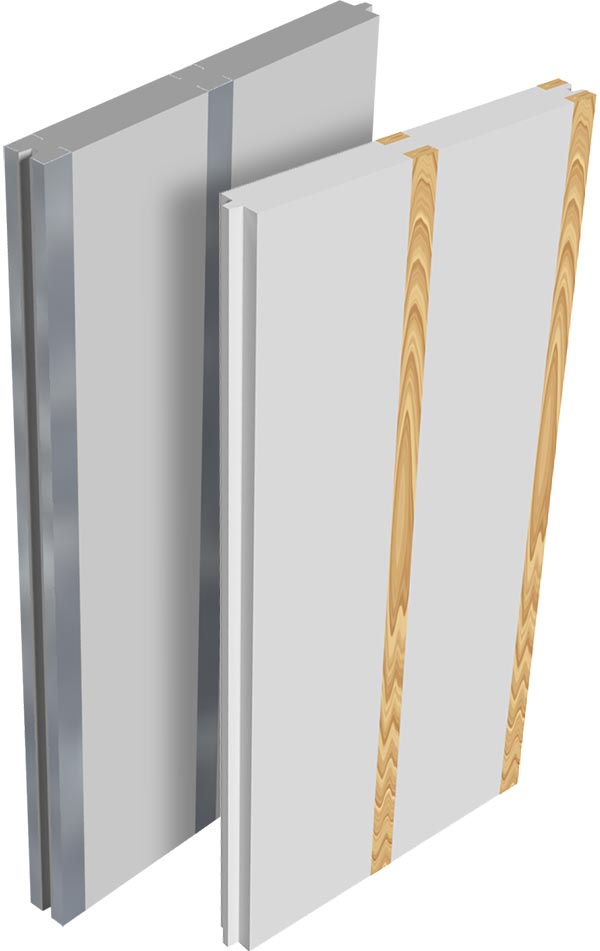

Wise Sturdy Steel and Wood Panels

Wise steel panels are constructed of structural grade, G-60 galvanized opposing double steel framing members inserted into 1 pound per cubic foot density EPS foam insulation.

Wise wood panels are constructed of premium grade, 2″ x 4″ opposing framing members fastened onto 1 pound per cubic foot density EPS foam insulation.

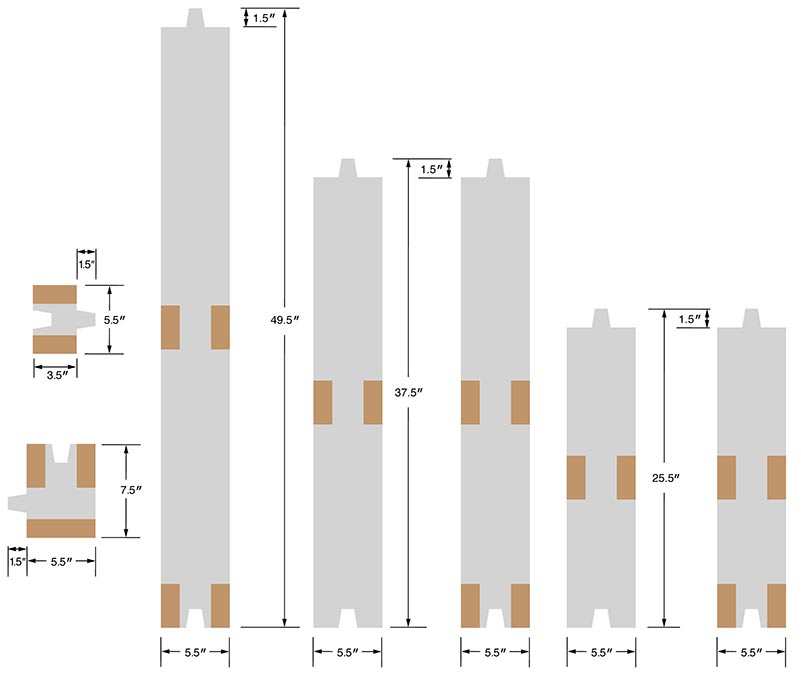

Available in 3½, 4, 5½, 7½, 9½, and 11½ inch thicknesses and 2, 3, & 4 foot widths. Lengths of 8, 9, 10 & 12 feet and more.

Wise expanded polystyrene (EPS) panels are not subject to thermal drift, meaning their R-value remains constant throughout the life of the building. – U.S. Department of Energy
